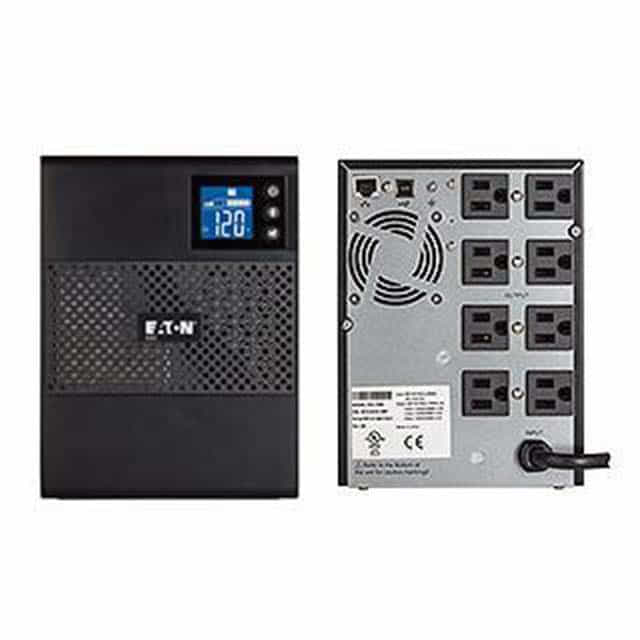

Eaton 5SC 1500 – UPS – 1080 Watt – 1500 VA – 5SC1500
Availability:
In stock
Mfr. P/N:5SC1500
SKU#:TCS-PD-U-5SC1500
Weight(lbs):37.00
Warranty:3-year warranty
$ 501.41
In stock
Eaton 5SC UPS 1500 VA 1080 Watt 120V Line-Interactive Battery Backup Tower USB – Tower – 5 Minute Stand-by – 110 V AC Input – 8 x NEMA 5-15R
The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton’s Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
Features
- Enables you to customize UPS settings, view load and power consumption through the graphical interactive LCD screen interface
- Integrates with Intelligent Power Manager (IPM) for point-to-point power management (USB/serial) or network-based using server as a proxy. View Demo
- Offers user-replaceable batteries
- Extends battery service life by 50% with ABM technology
- Protects you with a three-year warranty, which includes the battery
- Corrects a wide range of input voltage variations through buck and boost operation
- Provides high quality pure-sinewave output capability, protecting any sensitive equipment connected ensuring consistent input voltage to the loads protected
- Primary Information
Product Description: Eaton 5SC 1500 – UPS – 1080 Watt – 1500 VA Device Type: UPS – external Weight: 74.96 lbs Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 1080 Watt / 1500 VA Input Connectors: 1 x power NEMA 5-15 Output connectors: 8 x power NEMA 5-15 (UPS and surge) Battery: Lead acid Run Time (Up To): 5 min at full load Networking: RS-232, USB Color: Black System Requirements: Apple MacOS, Linux, Microsoft Windows Dimensions (WxDxH): 5.9 in x 16.1 in x 8.2 in Manufacturer Warranty: 3-year warranty - General
Device Type: UPS – external Color: Black - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 96 – 144 V Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-15 Power Output Connectors Details: 8 x power NEMA 5-15 (UPS and surge) Output Voltage: AC 120 V Power Capacity: 1080 Watt / 1500 VA Output Waveform: Sinewave Efficiency: 94% - Battery
Technology: Lead acid Run Time (Up To): 5 min at full load ¦ 13 min at half load - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (USB) – 4 pin USB Type B ¦ 1 x management (RS-232) – 9 pin D-Sub (DB-9) - Miscellaneous
Cables Included: Serial cable – external – 6 ft ¦ USB cable – external – 6 ft ¦ Power cable – integrated – 6 ft Features: Advance Battery Management (ABM), LCD display, cold-start function Compliant Standards: CISPR 22 Class A, NOM, IEC 62040-2, RoHS, FCC Part 15 A, cULus - Software / System Requirements
Software Included: Intelligent Power Manager OS Required: Apple MacOS, Linux, Microsoft Windows - Manufacturer Warranty
Service & Support: Limited warranty – 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 95 °F Humidity Range Operating: 0 – 90% (non-condensing) Sound Emission: 55 dB - Dimensions & Weight
Width: 5.9 in Depth: 16.1 in Height: 8.2 in Weight: 74.96 lbs - Special Feature
COO: CHINA
